氣動輸送旋轉閥產品概述：
RVC Rotary Valve SeriesProduct Instroduction
PVA型氣動輸送旋轉閥又稱直吹式旋轉閥，用于粉狀物料的氣力輸送系統中作為加料裝置，壓差zui大不超過0.12MPa，工作溫度≤100℃。
It is applied to add powder material for pneumatic conveying system. The maxdifferent pressure is ;ess than 0.12Mpa; working temperature ≤100℃.
1.多標準圓形法蘭接口及多形式結構轉子
2.優化設計的進料口和直吹通道
3.材質采用不銹鋼或碳鋼，堅固耐用
4.zui小化的轉子間隙將泄漏量降到zui低
5.高填充效率,通道壓力損失小
1.It has round flange and round mouth; the body can match different type of Rotors.
2.Good design for eagle mouth inlet and direct air passage
3.Material in carbon steel or stainless steel Keeps solid durability.
4.Minimum gap between blade and body can lock the air efficiently.
5.High efficiency in discharging and avoiding jam, plus direct air passage keep high
efficiency in conveying system.
氣動輸送旋轉閥產品示意圖：
RVC Rotary Valve SeriesProduct Schematic Drawing
氣動輸送旋轉閥的漏氣量估算值
RVA-Rotaty valve air leakage value

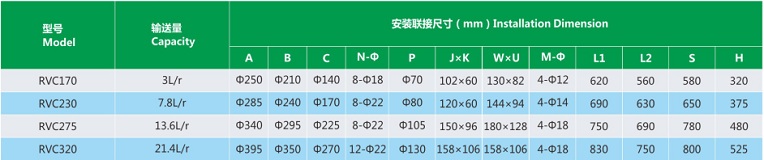

氣動輸送旋轉閥主要技術參數Main Technical parameters
